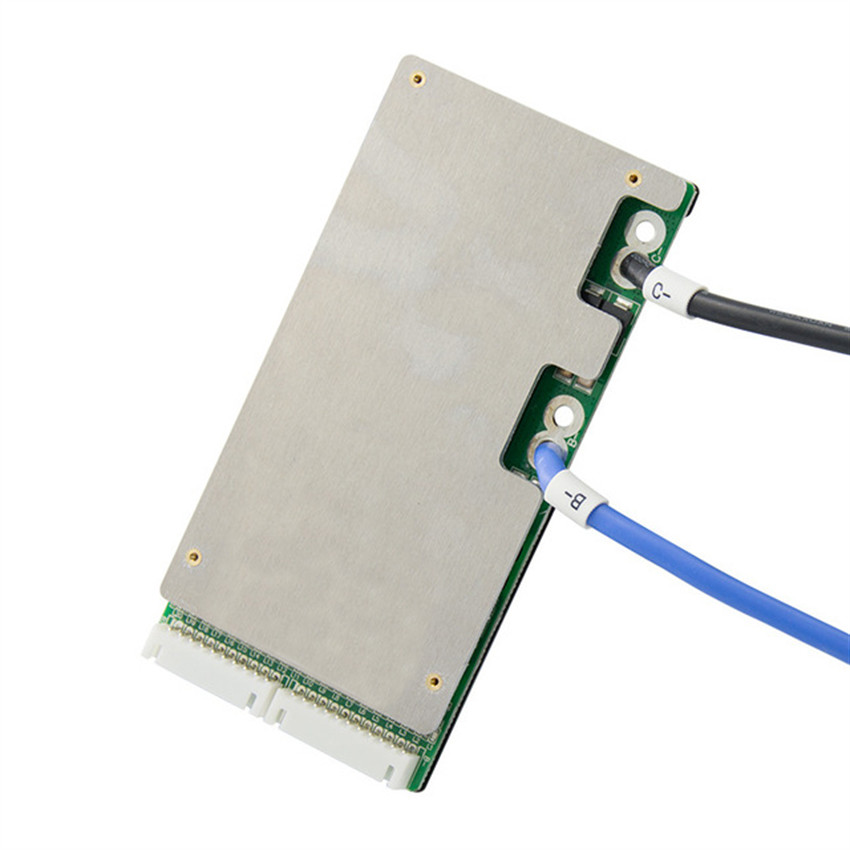

Name: 50A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection
Brand: XUWEN
Price: 1 USD

Add to Cart

30A 40A 50A 20S 60V 72V Li Ion LiFePO4 BMS Battery Management System With Temperature Protection And Balance

Continuous discharge current	30A	40A	50A
Discharge over current protection	2~4 times of continuous discharge current
Mosfet	<20mΩ
Charge current	20A	20A	30A
Charge voltage	Lifepo4 battery:series3.65V Li ion battery: series4.2V

Over charge protection:	Balance voltage:
Detection voltage: Lifepo4: 3.75±0.05V Li ion: 4.25±0.05V	Start voltage: Lifepo4: ≥3.5V Li ion: ≥4.18V
Detection delay time: 800mS	Recovery voltage: Lifepo4: <3.5V Li ion: <4.18V
Recovery voltage: Lifepo4: 3.55±0.05V Li ion: 4.15±0.05V	Balance current: 20-30mA

Over discharge protection:	Over current protection:
Detection voltage: Lifepo4: 2.2±0.1V Li ion: 2.8±0.1V	Detection current: 2~4 times of continuous discharge current
Detection delay time: 500~1500mS	Detection delay time: 100mS
Recovery voltage: Lifepo4: 2.7±0.1V Li ion : 3.0±0.1V	Recovery condition: Charge activate

Short protection:	Temperature protection
Trigger condition: exterior load short circuit	Charge discharge high temperature protection: 75±5℃
Detection delay time: 300uS
Recovery condition: Take off load

item	value
Model Number	LFP-412200
Place of Origin	China
	Guangdong
Brand Name	CL-RD
Base Material	Glass fiber
Copper Thickness	2mm
Board Thickness	20mm
Min. Hole Size	0.25mm
Min. Line Width	0.1mm
Min. Line Spacing	0.12mm
Surface Finishing	oxidation
Board Size	n/a
Size	23010520mm
Series	4S 8S
Discharge current:	100A 120A 150A 200A
Balance current:	150mA
NTC Temperature control:	Yes
reserved weak current switch	yes
Common port:	Yes
Application	the inverter, electric bicycles and the electric motorcycles
